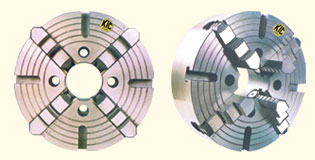

Our Products   >>   Independent Lathe Chucks (Dog Chucks)

For Approximate Dimensions click here

Salient Features:
 KIC Brand Independent Lathe Chucks are manufactured specially for heavy duty and rigid gripping. Bodies of graded casting are made from selected material, Brinell hardness is kept to the standard ratio. The whole body is Finished.
Test : Every chuck after completion is put on test, the gripping of jaws is tested by Dial Indicator.
Grinding : Round back and front surface of body are grinded for accurate running. Every step of jaws is grinded to precision, accurate and for exact holding.
Supervision : Finally every jaw is checked with the micrometer under specialised supervision every time. The Parts of chuck are interchangeable.
Every chuck is supplied with one operating key and a set of mounting bolts.

 SELF CENTERING CHUCKS
INDEPENDENT LATHE CHUCKS
FACE PLATE JAWS
SPECIAL PURPOSE CHUCKS
BIG BORE TRUE CHUCK
POWER CHUCK
MTJP TYPE CHUCK
COOKER CHUCK
L-TYPE 2-JAWS CHUCK
6-JAWS TRUE CHUCK
BEARING CHUCK

Quick Contacts
Call : +91-98155-34954
Email : kicchucks@yahoo.com



Approximate Dimensions:






A

(Size)

B

(Height)

C

(Cupling)

D

(Bore)

E

(Jaws Lenght)

F

(Jaws Thickness)

G

(Jaws Height)

H

(PCD)

Wt. Kgs.

(Approx.)

6”

2 7/8”

5”

1 ½”

2 ½”

7/8”
1 1/4"

4 ¼”

10

8”

3 ¼”

4 ¼”

2 1/8”

3 ½”

1 1/8”
1 3/4"

3 5/8”

16

10”

3 ¼”

5”

2 5/8”

3 ½”

1 1/8”
1 3/4"

4 3/8”

25

12”

4”

6”

3 1/8”

4 ½”

1 3/8”
2 1/2"

5 ¼”

40

14”

4”

6”

3 ½”

4 ½”

1 3/8”
2 1/2"

5 ¼”

50

16”

4 ¾”

7 ½”

4 ½”

5 ½”

1 ¾”
2 1/2"

6 ½”

70

18”

4 ¾”

7 ½”

4 ½”

5 ½”

1 ¾”
2 1/2"

6 ½”

85

20”

4 ¾”

9”

5 ½”

6”

1 ¾”
2 3/4"

8”

110

22”

5”

9”

6 ½”

6”

1 ¾”
2 3/4"

8”

140

24”

5 ¾”

10”

6 ½”

7”

1 7/8”
2 3/4"

9”

180

26”

5 ¾”

10”

6 ½”

7”

1 7/8”
2 3/4"

9”

200

28”

6 ½”

12”

7 ½”

8”

1 7/8”
4"

11”

240

30”

6 ½”

12”

8”

8”

1 7/8”
4"

11”

280

36”

7”

13 ½”

9”

9”

2 1/8”
5"

12 ½”

400

40”

7”

14 ½”

10”

10”

2 1/8”
5"

13 ½”

500

42”

7 ½”

15 ¾”

11”

10”

2 1/8”
5"

14 ¾”

600

48”

8”

18”

12 ½”

12”

2 3/8”
6"

16 ¾”

800

60”

10”

21”

16”

16”

2 7/8”
7"

20”

1700

72”

11”

26 ½”

18”

19”

2 7/8”
7"

24 ½”

2700
These dimensions are subject to change for further improements without any intimation.
